Measurement of depths

Simultaneous gauging of diameter and detecting of NO-Go-gauges – TD-Gauge +

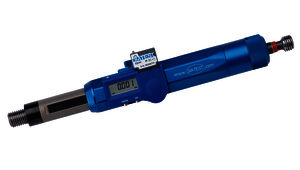

TD-Gauge+ DIGITAL with radio module MDU-OPTO-S
TD-Gauge+ DIGITAL with radio module MDU-OPTO-S

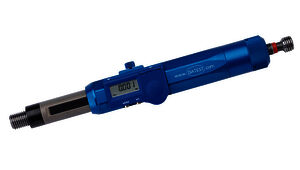

TD-Gauge+ DIGITAL
TD-Gauge+ DIGITAL

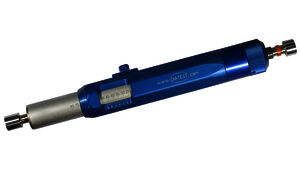

TD-Gauge+ (analogue version)
TD-Gauge+ (analogue version)

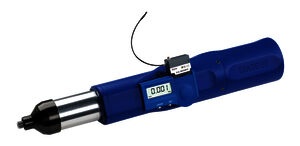

TD-Gauge Motorized
TD-Gauge Motorized
  • Universal system: DIN-gauges of all manufacturers can be used (DIN cone 1:50)
  • Thread gauges: M2.5 to M18 (DIN 2282 and DIN 2284)
  • Cylinder Plug gauges: Ø 2.0 to 18.0 mm (DIN 2248 and DIN 2249)
  • Reading scale is always visible
  • Universal setting master and accessories as like depth stop, air- and dirt-groove or extensions available
  • Special solutions on request
  • Various certificates available

TD-Gauge+ DIGITAL

  • Resolution switchable between 0.01 and 0.001 mm
  • Integration into DIAWIRELESS real radio networks (Opto-RS232 interface)
  • Process integration with automatic measuring cell from DIATEST (TD-Gauge+ AUTOMATED) [Link zur entsprechenden Seite Messzelle]
  • Switch mm / Inch
  • Preset-function

TD-Gauge+ ANALOG

  • Possible reading accuracy 0.05 mm
  • Pre- and post-decimal point places are readable at a glance (vernier)

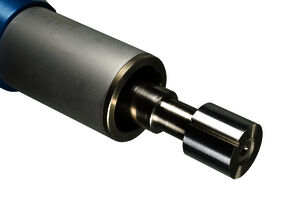

Cylinder Plug Gauge (GO)
Cylinder Plug Gauge (GO)

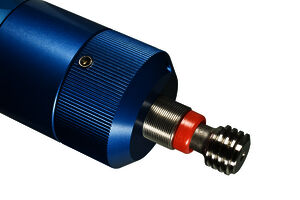

Thread Plug (NOGO)
Thread Plug (NOGO)

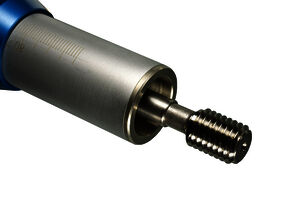

Thread Plug (GO)
Thread Plug (GO)

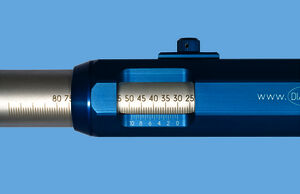

Display of analogue TD-Gauge+ with Nonius
Display of analogue TD-Gauge+ with Nonius
