Measurement of depths

For the simultaneous measurement of diameter and depth of a bore: Gauge-2Dimensions

Gauge-2Dimensions
Gauge-2Dimensions

Througt the combination of two measruing solutions, different measuring tasks can be done wih just one measuring operation:

Mesauremnt of an I.D. and a depth.



The best of two worlds habe merged: the ergonomics of a TD-Gauge+ DIGITAL with the absolute precision of a BMD plug gauge.

  • Use of BMD plug gauges from Ø 4,2 mm and above
  • Simple and quick change of BMD plug gauges
  • Easy set up and handling
  • Easy inegration into DIAWIRELESS ral radio networks
  • Measured data is displayed separately
  • Digital display of depth measurement switchable between 0.01 mm and 0.001 mm

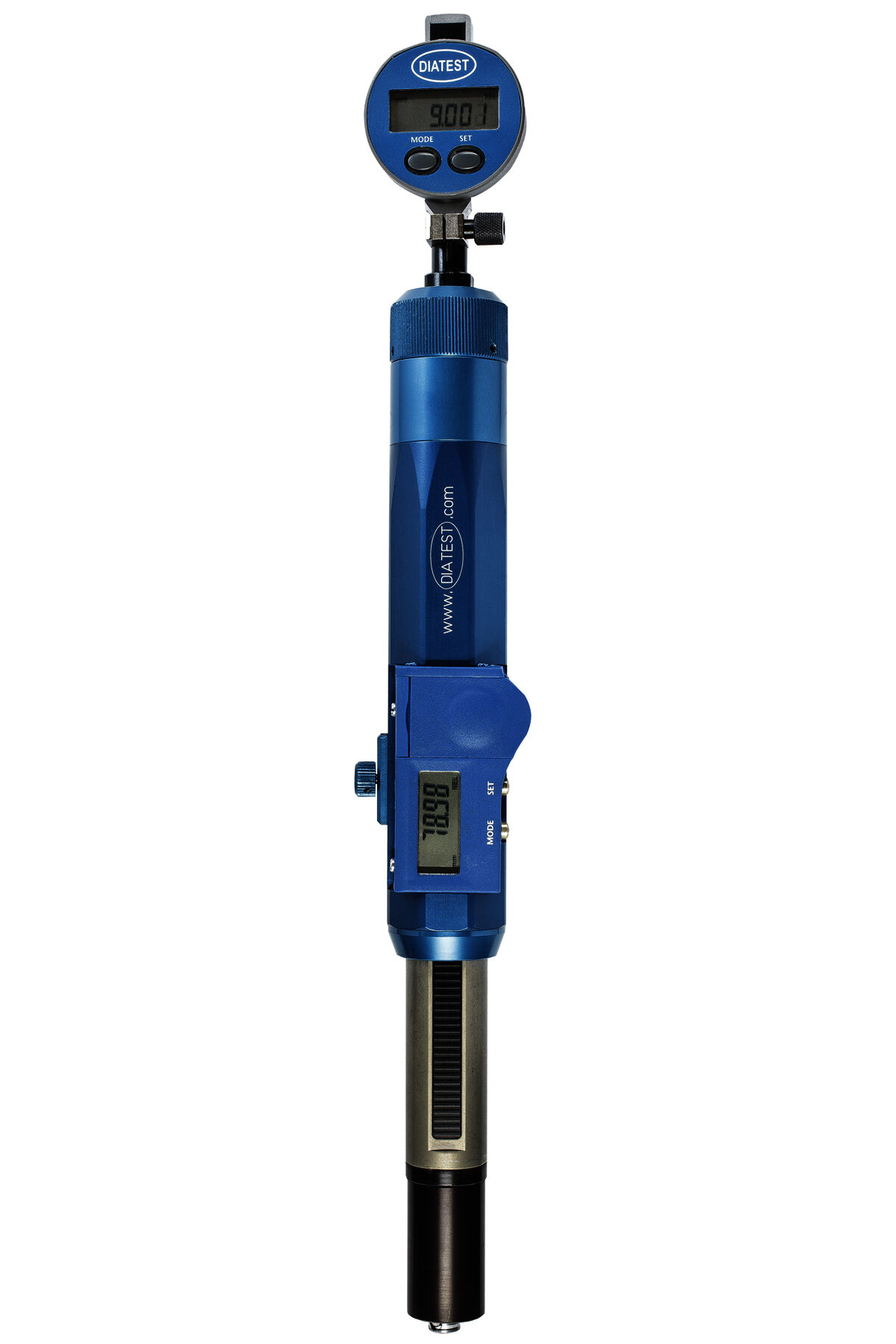

Gauge-2Dimensions

Free choice for digital display of the diameter, e.g. with small dial gauge MDU-S125. Optional transfer of measured data via cable or wireless

Gauge-2Dimensions DYNAMIC WIRELESS

Diameter Measurement: Measured data are automatically send wireless to DIATRON6060-µNetwork or comparable PC with DIA-Gauge Base Software

Downloads

Gauge-2 Dimensions data sheet
Gauge-2Dimensions DYNAMIC WIRELESS
