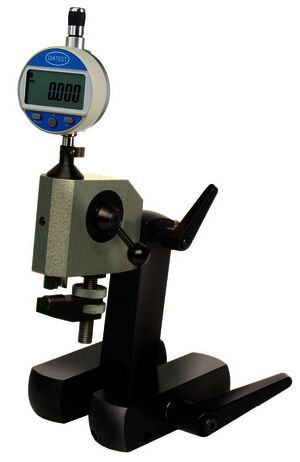

External diameter gauge AMG

Self-centering outside diameter gauge

The AMG is a versatile and high-precision device for use in both: production and inspection areas:

  • Measuring range: 5 – 25 mm
  • Repeatibility: <= 1 µm
  • Travel ca. 6 mm
  • Measuring pin with carbide contact point
  • Self-centering
  • Simple zero-setting using setting discs
  • Lower measuring leg adjustable
  • Special designs or smaller diameters on request

Analoge and digital indicators and probes (Ø 8h6) can be used
