Examples for measuring solutions
Example: Gear Gauging
| Working piece: | Gear Gauging O.D. with even splines | ||
| Measuring task: | measurement of O.D. of gears of a small work piece Ma = 75 mm by random; Measured values will only be displayed | ||
| Measuring environment: | Table next to a production machine in a production hall | ||
| Solution: |

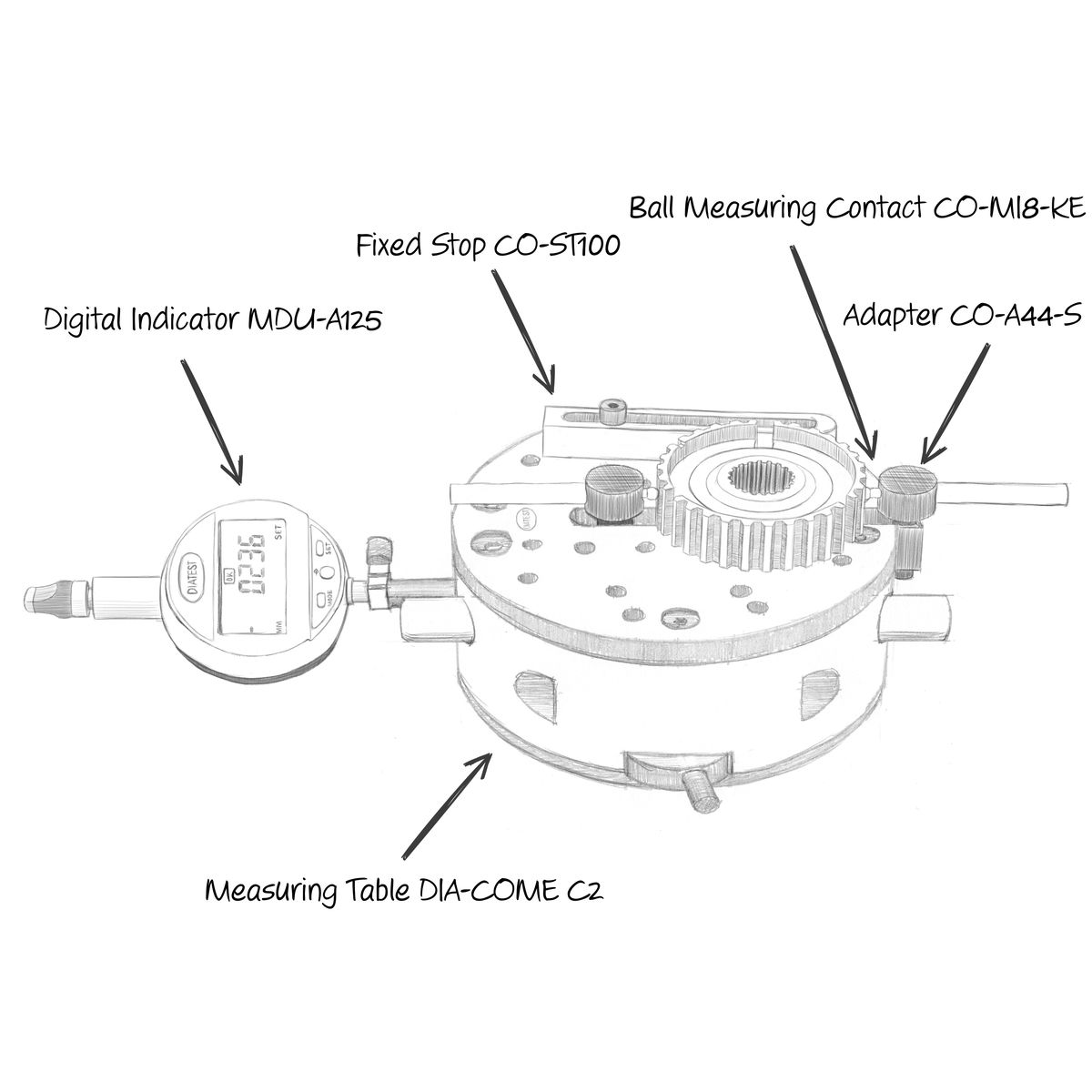

see design |
||
| Advantage: | precise and safe measurement by the stable and sturdy DIA-COME measuring table, easy adjusting of the table if needed | ||
