Analogue (mechanical) indicators are a sturdy and economical solution for single measurements

HIGH-quality mechanical indicators

The new mechanical HQ indicators (MU-HQ) from DIATEST stand out thanks to three important factors:

1. They are already designed for internal measurement!
2. The high resolution of 1 µm provides an extremely clear and easy-to-read display!
3. All important global standards are covered, including VDI/VDE/DGQ/DKD!!

Some features

The DIATEST HIGH:Quality indicator is almost indestructible thanks to its robust mechanics!

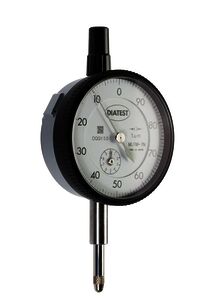

Metric indicators

• with a display of 1 µm or 10 µm
• with measuring forces between 0.6N and 2N

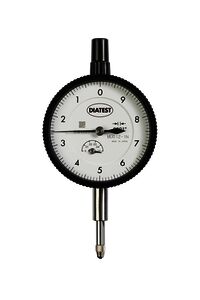

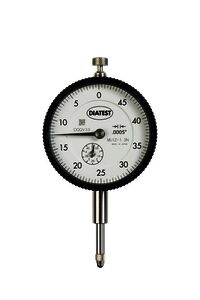

Inch indicators

• with a display of 0.0001'“ or 0.0005”' µm
• with measuring forces between 0.8 N and 2 N

High reading accuracy

• With just one turn of the pointer
• Clear display of the scales
• Reduced reflection of the display

Greater safety...

… thanks to high linearity

Standards and certificates

• All important standards covered, worldwide
• Optional certificate according to DIATEST factory standard (testing according to VDI/VDE/DGQ/DKD)
• Optional DAkkS certificate

Technical data

• Clamping shaft: 8h6 mm / 0.315"
• Optional: tolerance marks and retracting lever
• Outer diameter: 57 mm
